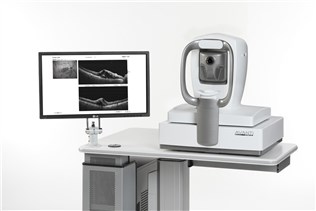

iScan80 OCT offers all of the scans available on a traditional OCT with the added benefit of simplified operation. Scan acquisition is as easy as positioning the patient with the assistance of iScan80's Pupil Alignment Technology, choosing the scan and pushing start. iScan80 performs all of the focus and alignment operations while talking the patient through the entire exam. With iScan80, your office staff will want to run the OCT.
iScan80 is a tabletop system that is approximately the same size as a desktop computer, so any practice can find space for the system. iScan80 also features quick plug-and-play installation, making it a truly portable OCT system.
Take a new approach to protecting your patients' eye health with the iWellness Exam, available only from Optovue. This quick and easy scan gives you a detailed look at the health of your patient's retina and ganglion cell complex with robust normative comparison, to help you identify signs of disease before they may be noticeable on clinical exam. And because the iWellness scan is separate from the iScan80 medically-billable scans, it provides a new revenue stream for the practice.
iScan80 is available in two configurations to give you flexibility in incorporating OCT. iScan80 Essential offers the iWellness scan as well as basic retina and glaucoma scans for practices who are new to OCT technology. For practices seeking a fully-featured system, iScan80 Comprehensive provides iWellness along with all of the retina, optic disc and anterior segment scans available on the iVue system. The iScan80 Essential system can be upgraded to iScan80 Comprehensive at any time.
• 40° Enface OCT reference scan
• Multi-layer Simultaneous enface assessment
• 3mm scanning depth
• Widefield scanning of high myopic eyes
• Image choroid and vitreous in a single B-scan
• High Density Cube – 320 x 320 3D Cube with SmartTM Motion Cancellation
• High-speed – Higher quality data in less time
• Real-time VTRAC Eye Tracking – higher repeatability
• High Resolution – 3µm digital
• SharpVue – unparalleled detailed images
• DCI– Deep choroid Imaging
• FLR– Fovea Location Recognition
• Advanced OCT imaging platform for future generations of clinical applications

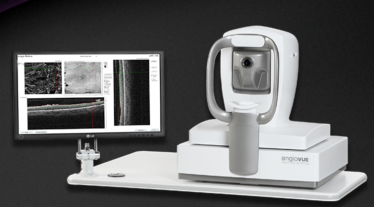

The ANGIOVUE Imaging System is the only commercially available, dual-modality OCT system capable of imaging and displaying function and structure of the ocular microvasculature - through a non-invasive procedure.
The ANGIOVUE Imaging System can be integrated into an existing Avanti platform, and is available in two configurations: Retina and Multispecialty. It has 5 key features:
- Split-Spectrum Amplitude-Decorrelation Angiography: Uses motion contrast to detect flow by taking 8 consecutive OCT B-scans at a single location, and then comparing each OCT scan with the subsequent scan.
- En Face 3D Visualization: Enables 3D and depth-resolved visualization of the various anatomic layers of interest, including the superficial capillary, deep capillary, outer retina, and choroidal capillary.
- Motion Correction Technology (MCT): developed in collaboration with MIT, this technology is used to remove motion artifacts such as saccades.
- CUDA Parallel Computing Platform: with an operation time of just 10 seconds, dramatically reduces computation time needed to correct motion artifacts post data acquisition.
- Spectral Domain OCT System: offers A-line detection without moving mechanism, inherently more stable platform for OCT-Angiography, less repeated scans, and refined user and patient interface for optimal clinical usage.
The iVue®80 OCT is a powerful clinical tool that transforms the way you assess the retina, optic disc and the cornea. Quantify the thickness of the retina, nerve fiber layer, ganglion cell complex and the cornea. Track change and predict trends in RNFL and GCC thickness and precisely measure angles to aid in disease diagnosis.
OCT Image: 80,000 A-scan/second
Frame Rate: 256 to 1024 A-scan/Frame
Depth Resolution (in tissue): 5.0 µm
Transverse Resolution: 15 µm (retina)
Depth: 2- 2.3mm (retina)
Scan BeamWvelength: ƛ= 840 ± 10 nm
Exposure Power at pupil: 750 µW
OCT Fundus Image (En Face): FOV 12mm(H) x 9mm(V)
FOV: 21° (H) x 21° (V)
Minimum Pupil diameter: 2.5mm
External Image (Live IR)
FOV: 13mm x 9mm
Working Distance: 22mm / 15mm
Motorized Focus Range: -15D to + 12D
iFusion combines the best of Spectral-Domain OCT and Fundus imaging by adding the powerful OCT capabilities of iVue and high quality imaging from iCam on a single, integrated, versatile platform that will add value to your practice. iVue is the compact version of the RTVue OCT, offering the same scanning speed and resolution as the larger system, that includes scanning and reports for retina, retina nerve fiber and cornea assessment by the clinician. The iCam is a color, non-mydriatic fundus camera offering high quality color images in a simple, compact and affordable device.
Created by Optovue, the company that pioneered OCTA and the acknowledged leader in OCT innovation, SOLIX is a new class of OCT built upon 27 years of experience in OCT technology advancement. Solix takes OCT beyond the status quo with new capabilities, new visualizations and new applications that empower practitioners to identify and manage numerous pathologies from the front of the eye to the back.
SOLIX delivers pristine images of retinal structures with the 16mm x 6.25mm FullRange retina scan that enables confident diagnosis and management of retinal pathologies – even in highly myopic patients. FullRange anterior segment imaging captures the entire anterior chamber in a single scan for comprehensive assessment of cataract patients, refractive surgery candidates and glaucoma suspects.
SOLIX delivers multiple tools for a new generation of disease management that improves throughput and enables superior patient care: anterior and posterior OCT, OCT angiography, fundus photography, external color photography, evaluation of the meibomian glands of the upper and lower lids, Optovue-exclusive wellness protocols.
Ultra-fast spectral-domain technology produces a wide and deep field of view that does not compromise image resolution. Multi-volume merge technology averages four scan volumes to deliver high-density images with pristine clarity. And 3D vessel rendering enables real-life visualization of retinal vasculature and vascular connectivity.
|Axial Resolution||5µm (in tissue)|
|Lateral Resolution||15µm (in tissue)|
|Transverse Resolution||15µm (in tissue)|
|Scan Depth||Up to 3mm (regular mode)|
|Up to 6.25mm (FullRange mode)|
|Scan Width||3mm - 16mm|
|Dioptric Range||-15D to +15D|
|Retina Scan Sizes||3x3mm, 6.4x6.4mm, 9x9mm, and 12x12mm|
|Disc Scan Size||6x6mm|
|AngioVue Montage||Two 9x9mm scans, four 9x9mm scans|
|OCT Imaging | Anterior Segment:|
|Lateral Resolution||18μm (Regular CAM) (in tissue)|
|36μm (FullRange CAM) (in tissue)|
|Scan Depth||Up to 3 mm (regular lens)|
|Up to 6.25mm (FullRange lens)|
|Scan Length||2mm - 18mm|
|Scan Mode||Color, red-free*|
|Field of View||45° and 35° (small pupil mode)|
|Dioptric Range||-35D to +30D|
|Pupil Size||≥ 4.0 mm; ≥ 3.3 mm (small pupil mode)|
|External Photograph||Color (white light flash)|
|External Infra-Red (IR) Image||IR (940nm illumination)|
|Electrical and Physical Specifications:|
|Weight||95 kg (210 lbs)|
|Instrument Dimensions||1072mm X 600mm x 610mm (W 39.4 x D 31.5 x H 59 inches)|
|Table Dimensions||952mm x 600mm x 913mm (W 36.2 x D 23.6 x H 35.9 inches)|
|Fixation||External and 13-point internal|
|Electrical Rating||AC 100V~240V|
|Computer / Networking Specifications:|
|Operating System||Windows 10|
|CPU||Intel Core i7-8700 processor or above|
|RAM||32GB DDR4 or more|
|Hard Drive||Solid state drive 256GB for operating system|
|Main drive 4TB|
|Back-up drive 4TB|
|DICOM||DICOM MWL, DICOM storage|
|Networking||NetVue Pro Review Software|
|*Color image is processed and then displayed as a pseudo red-free image.|
